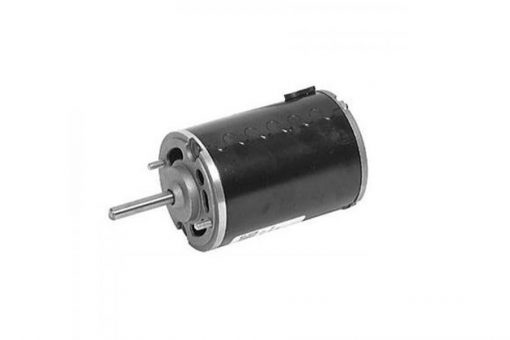

Blower Motor – Single Shaft Motor 12V CW (1001013)
$109.50
Blower Motor – Single Shaft Motor 12V CW (1001013)
In stock
Description: Red Dot Single Shaft Blower Motor RD5-5269-0, 2809-541-176, RD3-4058-0, BSM301279, 4379-RD5-5269-0, 4379-RD5-9100-0, 4379-RD510337-0, 3949388
Volts: 12V
Length: 4.75” (OA Body)
Wire Type: 2 wires
Motor Diameter: 3”
Motor Length: 4”
Mount Type: Stud
Rotation: CW
Shaft Length: 1.5”
Shaft Type: Single (5/16” dia)
Speed(s): 1
Mounting Stud Distance: 2.31”
Vent: Vented
Applications:
MACK Blower Motor CH, CL Series (2000-1988); CX, Vision (2000-1999)
Volvo Blower Motor All Models
Western Star Blower Motor All Models (2016-2014)
Cross Reference: 1001013, 3070, 3922, ABP N83 01111, ABP N83 301004, ABP N83 301821, 203166, 203174, 203213, 203255, HA1175, HA1180, HA23400,937198,937205,937209, 150-4476, 102-1072, 102-1088, E-803053, E-803140, E-803144, 2809-541-006, 2809-541-011, 2809-541-079, 2809-541-081, ZGG701019, C0AZ-18527D, 35423, 35433, A22-21403-000, 203235BSM, 1015003, 1015003, 1015006, 1099009, 1099023, 274265, 274340, 4379-RD103370, 4379-RD5103370, 4379-RD552690, 4379-RD556340, 4379-RD563150, 4379-RD591020, 1-9260, 1-9262, 209299, 66390-C1, 26-13308, 73R0922, 73R0932, RD-5-5634-0P, RF2342032562, RF4022032708, PM3693, HA11950, HA23400, 01-2613, 01-2627, 30-1000, 30-1001, 3918242, 3949388, ABPN8301111, ABPN83301004, ABPN83301821, A2221403000, 66390C1, 123753, 4379-RD5-5269-0, PTAC3070, PTAC3922,
| Weight | 5 lbs |
|---|---|
| Dimensions | 14 × 8 × 8 in |
