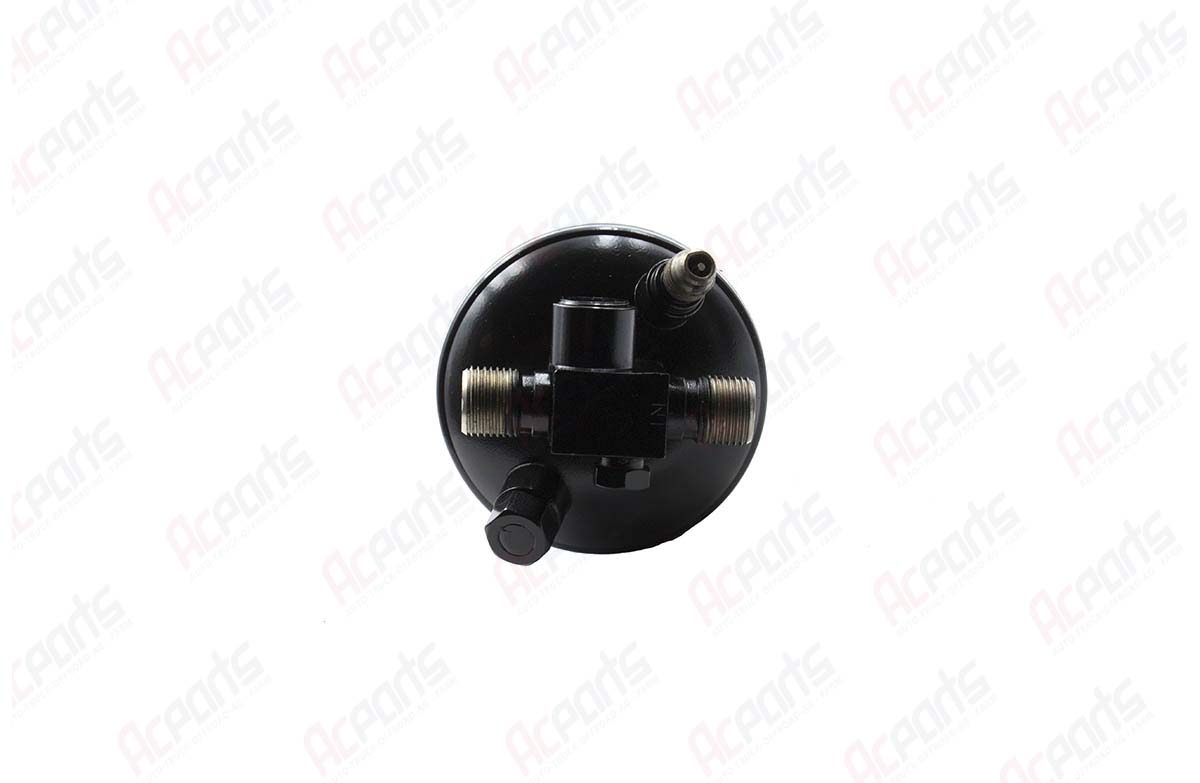

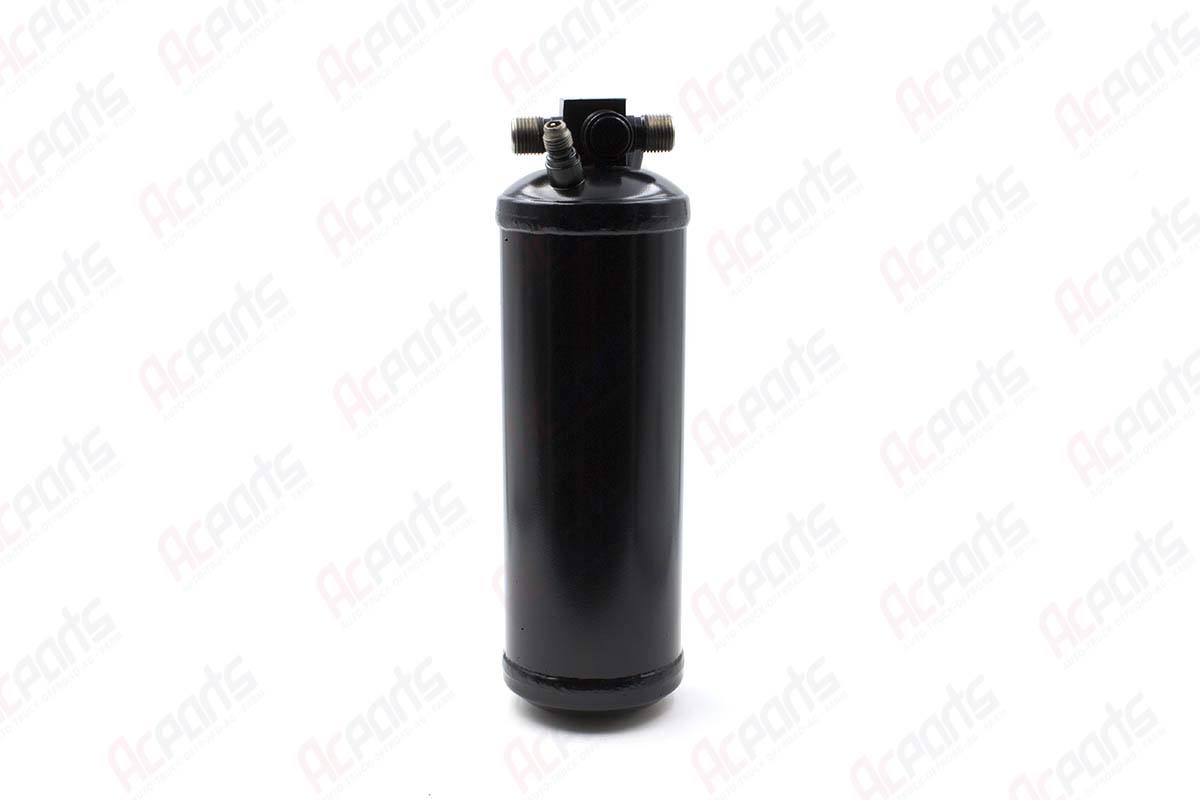

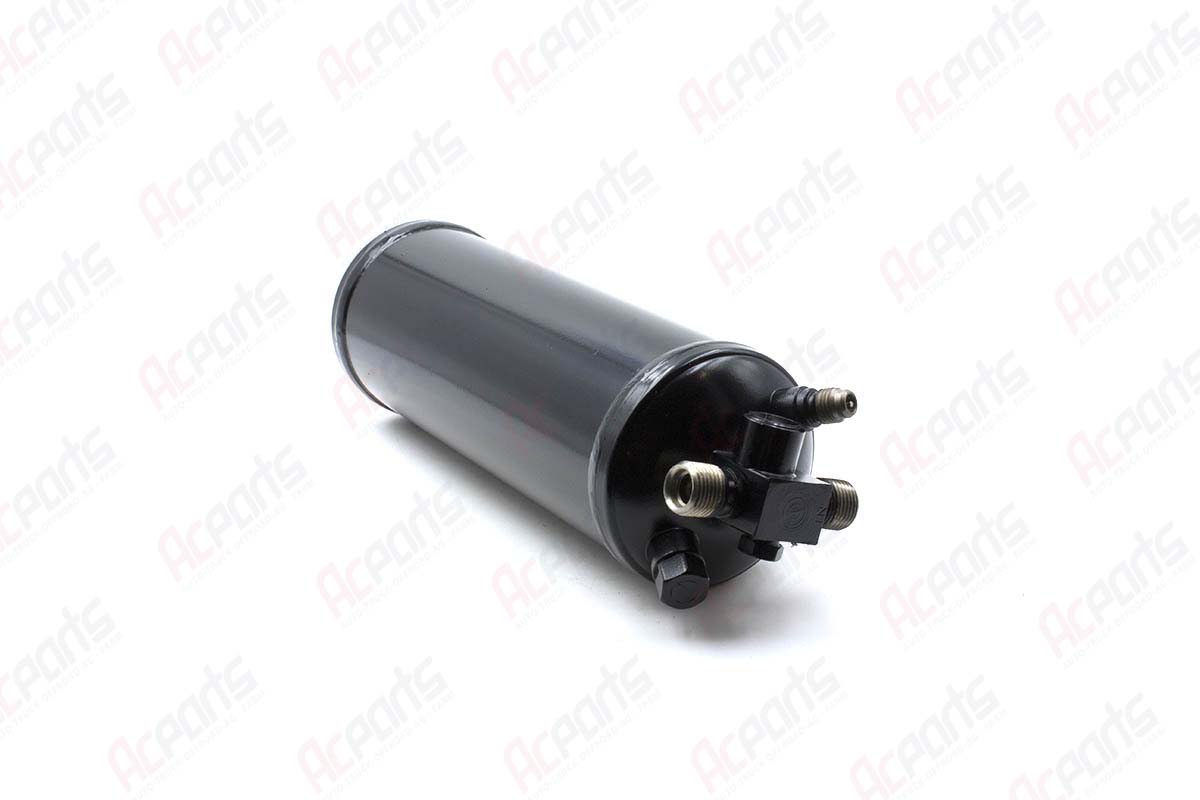

Peterbilt/Kenworth Receiver Drier K251-563, JA1135 (1901011)

Description: Kenworth-Peterbilt Trucks A/C Drier JA1135; 088133-00
OEM#: 088056-00, JA1300, 1-6449Q, K251-521, K251-563, K251-459, 088079-00, 15099P
Length: 10”
Diameter (in.): 3”
Inlet: Male Insert O’Ring
Inlet Size: 3/8” #6
Outlet: Male Insert O’Ring
Outlet Size: 3/8” #6
Material: Steel
Refrigerant Type: R12/R134a
Site_Glass Location: Side
Switch Port Type: 1/4” Male R12
Notes: Switch Port – Top; Press Relief Vlv – Side
Additional Notes: May or may not contain Moisture Indicator (not needed)
Other OEM#: 18-03076, BSM319164, 18-030761-00, 088056-01

Applications:
Kenworth Receiver Drier All Models (1996-1988)

Peterbilt Receiver Drier All Conventional Class 8 Series (1993-1988)

Cross Reference: 1901011, 7132, ABP N83 319154, ABP N83 319190, ABP N83 319208, ABP N83 319374, 540078, 540078C, JA1300, JA11350, 936107, 936130, 825-4103, 800-2128, E-804026, E-804169, 936130, 9827053, 33471, 33537, 04-9901, 406165, 088133-01, K251-521, K251-563, 1914002, 404382, 1-6449, 1-6451, 1-6484, 1-6658, 208209, 208242, 1691738-C91, 37-13595, 088133-00, 088133-04, 74R2306, RD-5-6504-0P, RF8145400627, 07-1003A, 73-3007, 3949130, 37-13571, 37-13595-AM, ABPN83319154, ABPN83319190, ABPN83319208, ABPN83319374, 1691738C91, 127711, PTAC7132, 088056-00, 1-6449Q, K251-459, 088079-00, 15099P, JA1305, 18-03076, BSM319164, 18-030761-00, 088056-01
