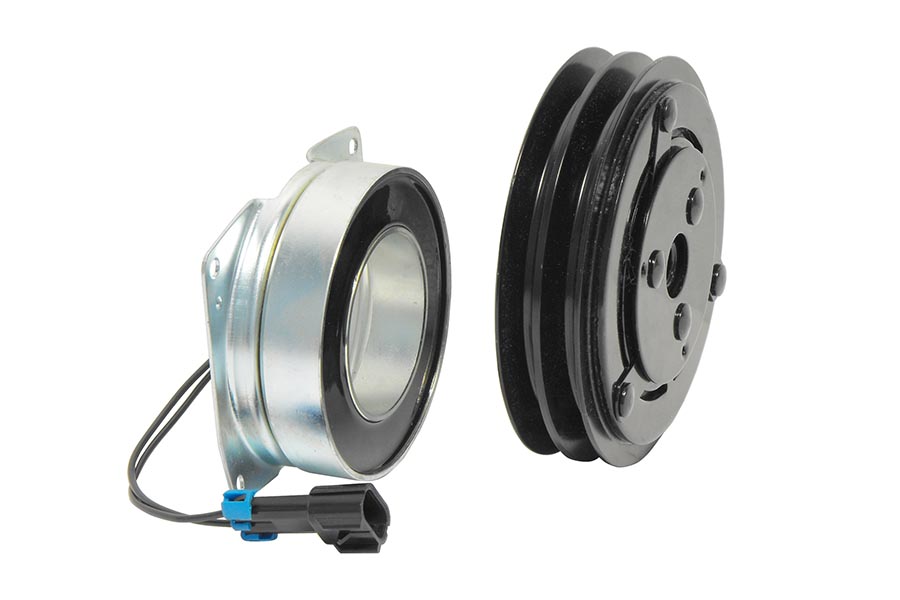

Description: T/CCI Compressor parts – CCI Clutch, 2 grv, 12V 2W
OEM Number: 024-25238, ABPN83-303063, 520566, 520556
Make: T/CCI (York Style)
Volts: 12V
No. of Grooves: 2 groove
Belt Type: Two 1/2” Belts
Diameter (in.): 6” – 152mm
A-B Distance: 1-11/16” x 2-5/16”
Wire Type: 2 Wire Metripack
Product Name: Compressor Clutch Assy.
Shaft Type: Keyed shaft
Diode Protection: w/diode
Applications:
Freightliner – Clutches T/CCI, York Style
Kenworth Clutches T/CCI, York Style
Peterbilt T/CCI, York Style Clutch
Cross Reference: 1501032, 5145, ABP N83 303063, ABP N83 303322, 1000139266, 526046, 650868, KA1525, KA15250, 948447, 250-2869, 200-1110, 01-22582, E-802550, E-802596, 948447, ZGG19776, BSM303063, K332-59-5, 1380002, 1399007, 1402011, 402196, IMXA3291, 274447, 2016366-C93, 520566, 522582, MAE-06A210, 22-11295, 14437, 75R1302, RD-5-9456-0, RF3416508335, RF9021000146, 024-25238, 02-3412, 51-3105, 3093418, 61103-0033, 22-11295-AM, ABPN83303063, ABPN83303322, 2016366C93, 124041, PTAC5145, 520556, 303063T, 402186, 2592000-C91, 2592000C91
