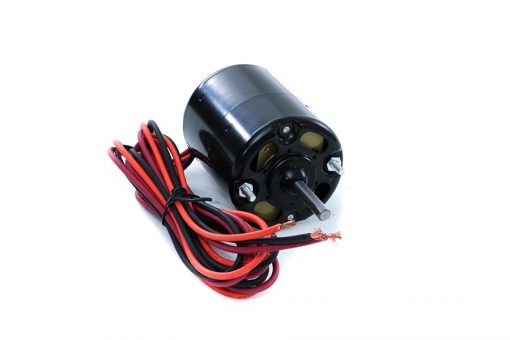

Blower Motor – Single Shaft Motor 12V CW 2 Speeds (1001094)

Description: Single Shaft Blower Motor HA1595, 20302P, RD3106-12, 345511-C92, 20152P1, 273140, 274238, 2807-516-039, 2807-517-041, 2807-517-043, 73R-0552, 7979-274070
Volts: 12V
Length: 4.25” (OA Body)
Wire Type: 2 wire (internal ground) or 3 wire (external ground)
Motor Diameter: 3”
Motor Length: 3.41”
Mount Type: Stud
Rotation: CW
Shaft Length: 1.5”
Shaft Type: Single (5/16” dia)
Speed(s): 2
Mounting Stud Distance: 2.31”
Vent: NON Vented
Note: D9HZ-18527A, 1707646
Note: 02-7008314, 1707686

Applications: Multi Fit Applications
Ford Truck Blower Motor Cargo, CF/CFT 600-802 (1990-1979)

International (Navistar) Blower Motor 2000 Series (1981-1974)

Kenworth Blower Motor C500 Series (1979-1976)

MACK Blower Motor All w/Kysor Models

Volvo Blower Motor All Models

Western Star Blower Motor All Models (1984-1971)
Cross Reference: 1001094, 3552, 201520, 20152P, HA1000, HA1100, HA1105, HA1595, RA1000, HA15950,937167, 150-4488, 102-1068, 15-8123, 02-17004, E-803008, E-803014, 2807-513-015, 2807-513-056, 2807-513-080, 2807-513-083, 2807-513-106, 2807-516-039, 2807-516-067, 2807-517-041, 2807-530-002, ZGG11635, ZGG12607, ZGG19269, ZGG19344, B8T-18527A, C0DF-18527A, C7TZ-18527D, D9HZ-18527A, 35523, 406140, 201520BSM, 20152P1, 20302P, 2030-12, 1099006, 1099006, 273140, 7979-274070, 1-1635, 1-2593, 1-2617, 1-2621, 1-3297, 1-3840, 208973, 209180, 1076362-R91, 1691719-C91, 419992-C91, 422984-C1,967109-R93, 26-13251, 73R0552, RD-3106-12, PE2020Q, PE2480Q, PF24800Q, RF4332030915, RF6402015946, PM321, PM321, 2606-2365, ABP N83 301051, RD3106-12, 01-3008, 30-1020, 1707646, 176100, 02-7008314, 1707686, 701024, 1076362R91, 1691719C91, 419992C91, 422984C1,967109R93, 123765, PTAC3552, RD310612, 274238, 2807-517-043, 73R-0552, RD3106-12
