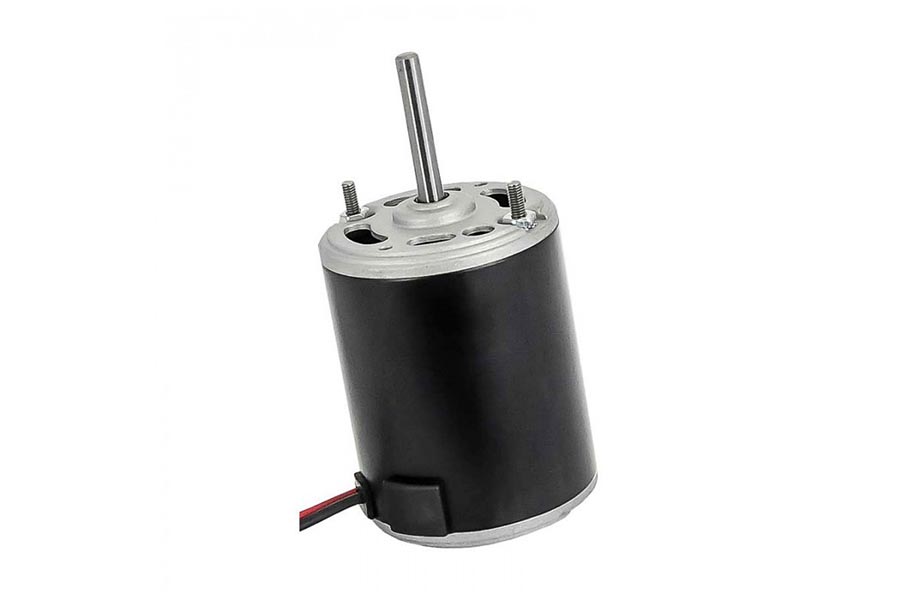

Blower Motor – Single Shaft Motor 12V CW (1001005)

The Blower Motor is a essential part of the HVAC system in your Peterbilt. If your truck is having trouble staying cool, it might be time to replace the blower motor. This Single Shaft Motor is a direct replacement for the original equipment manufacturer (OEM) part, and fits models 330 Series (2004-1995) and all Conventional class 8 Models except 387 (2002-1994). It has a voltage of 12V, measures 4.59” (OA Body), and has a 2 wire harness. The motor diameter is 3” and the length is 3.84”. It mounts with studs, has a shaft length of 2.09” and is vented.

Description: Peterbilt Trucks Blower Motor 2809-540-036, 203239BSM, P93CAA0300-01S, 3949265
Volts: 12V
Length: 4.59” (OA Body)
Wire Type: 2 wire harness
Motor Diameter: 3”
Motor Length: 3.84”
Mount Type: Stud
Product Name: Blower Motor
Rotation: CW
Shaft Length: 2.09”
Shaft Type: Single (5/16” dia)
Speed(s): 1
Mounting Stud Distance: 2.31”
Vent: Vented
Note: RD3-8657-0, RD5-8040-0, RD5-8202-1, RD5-8663-0

Applications:
Peterbilt Blower Motors 330 Series (2004-1995); All Conventional class 8 Models except 387 (2002-1994)
Volvo Blower Motor All Models
Western Star Blower Motor All Models (2014-1996)

Cross Reference: 1001005, 3044, ABP N83 301981, 1000039644, 203204, 890050, HA1825, HF1035, HA18250, 150-4483, 102-1124, 2809-540-006, 2809-540-036, 2809-540-053, 2809-540-061, 2809-540-074, 2809-541-087, 2809-550-066, 2809-550-080, 2809-550-087, 2898-091-005, ZGG701017, 203239, 203239BSM, P93CAA0301-01S, P93CAA0400-01S, 1017004, 1019001, 274334, MM-3-93, 26-14583, 301461BSM, 3X010983, 5X010034, 5X010735, 5X0121639983, P93CAA0300-01S, P93CAB4000-01S, 73R1001, PH24038Q, RF3691000752, RF4708900876, RF9341000700, PM3307, PM3607, 01-1401, 01-1402, 30-1009, 3949265, ABPN83301981, 123760, 1017005, HA0983, RD3-8657-0, RD5-8040-0, RD5-8202-1, RD5-8663-0, 203167, MM393, 890050
