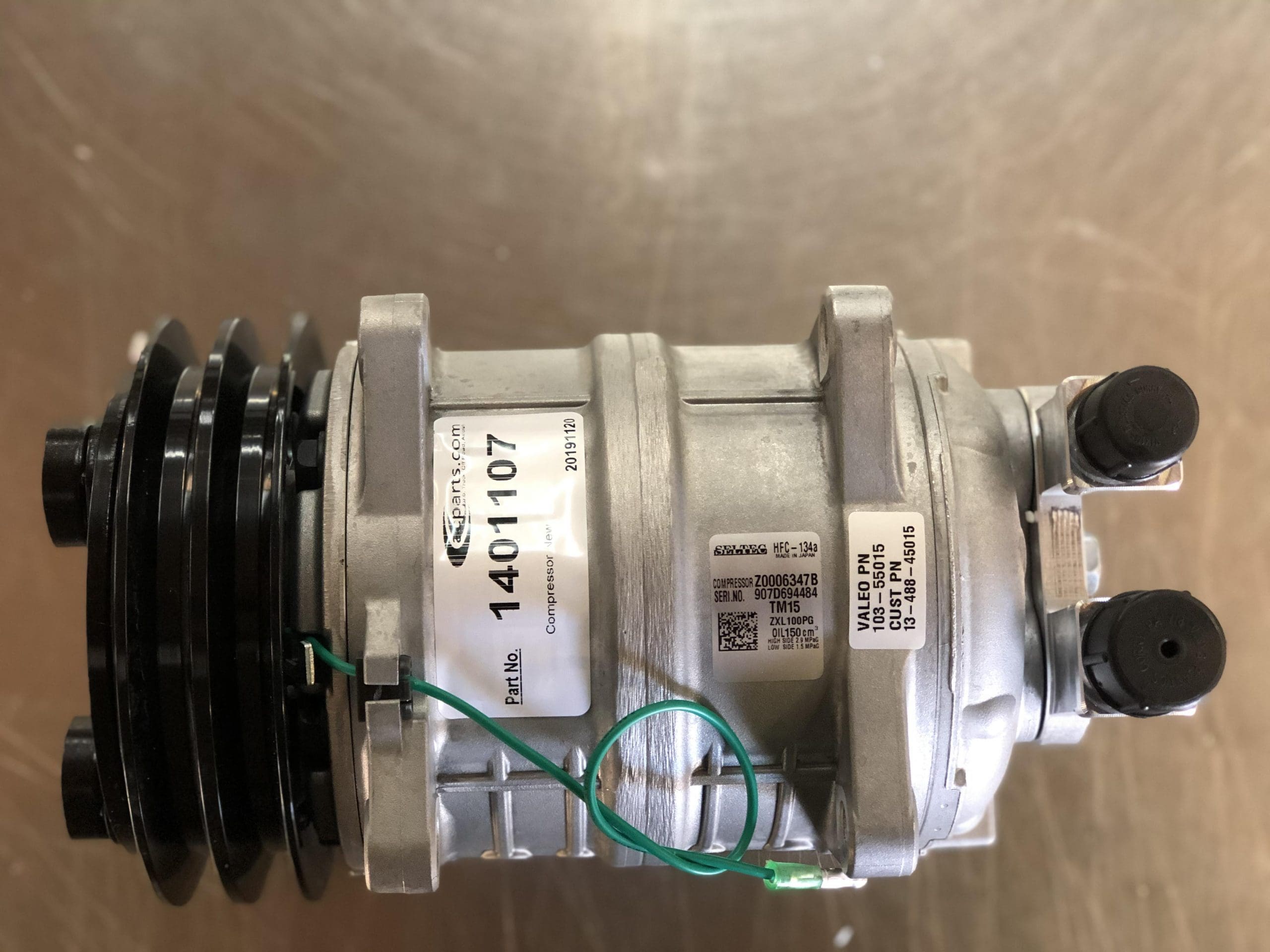

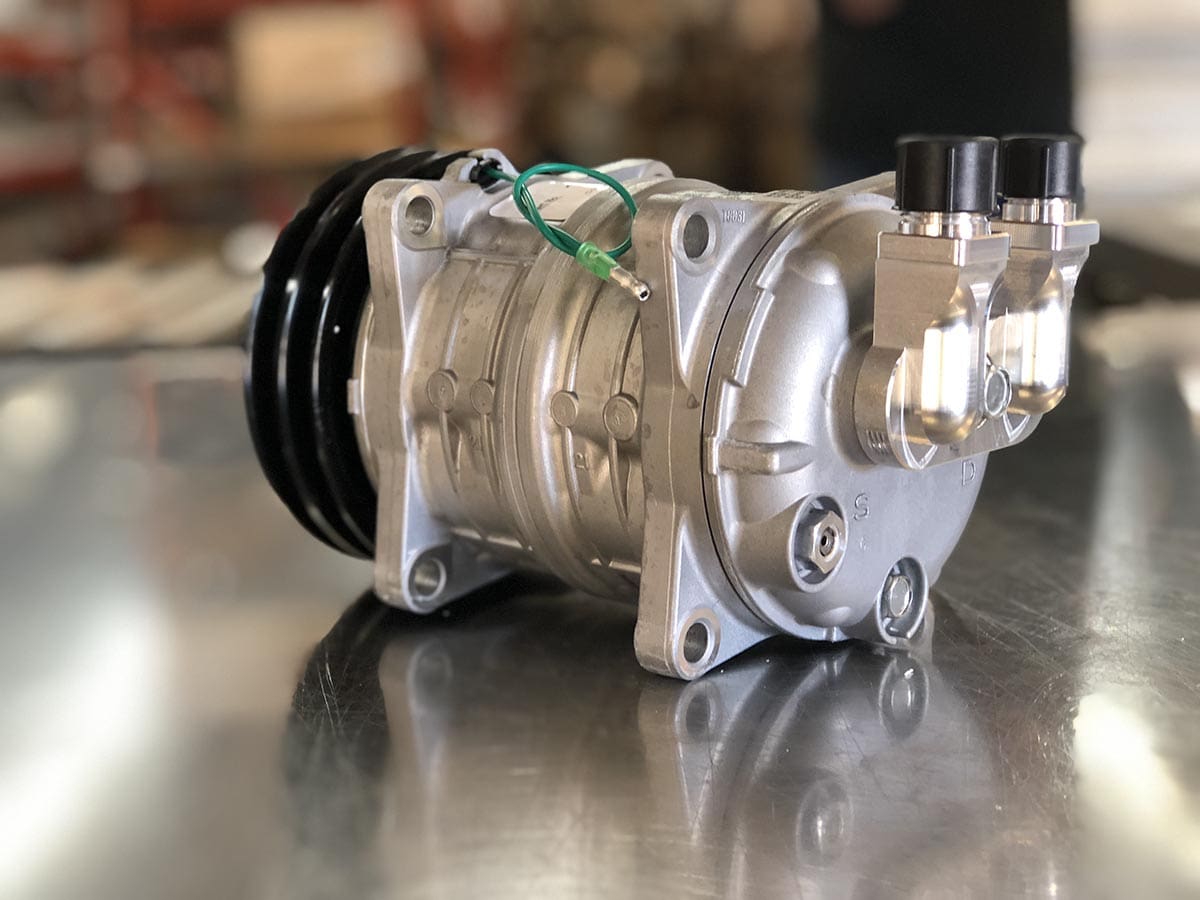

NEW SELTEC TM-15HS Compressor 2GR 24V – 435-55015, 45015, 55015, 488-45015 (1401107)

Description: NEW A/C Compressor TM15HS EAR V ORG 2AG 135 3E 24V B 1W
OEM Number: 10355015, 10055015, 488-45015, RD5-7163-0
Model: TM-15
Volts: 24V
Clutch Diameter: 135mm
No. of Grooves: 2 groove
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 9.0 cu.in.
Factory Oil Charge: 150cc Oil
Oil Type: PAG46
Fitting Port Position: Vertical
Fitting Style: Pad w/D-style #8-#10 O-ring manifold
Head Type: G – Univ Pad type
Wire Type: 1 Wire bullet
Mounting Type: Ear mount
Product Name: Compressor
Refrigerant Type: R134a
Rotation: CW/CCW
Shaft Type: Splined shaft

Application: LINKBELT – Excavators 4300,5800,6000 Seltec Compressor

Cross Reference: 1401107, 5756, ABP N83 304035, 525952, 526200, 501-275A, 300-6350, 340-2535, E-801322, 2521153, 1403101, 1403110, 402828, 402863, 20-45056, 75R8614, RF999991954, RF999998536, 488-45015, 488-45016, 488-45056, 488-45356, 03-3642, 50-4090, 85100540, 20-10235, ABPN83304035, 124909, PTAC5756 103-55015, 10355015, 10055015, 3708064552, 5821660193, 5821662010, 435-55015, 488-55015, C216105B, N205434U. CA13413, CA13495, 8FK 351 133-171, 351 133-211, ABP N83 30435, B402828, RD-5-7163-0, 43555015, 48845015, 10045015
