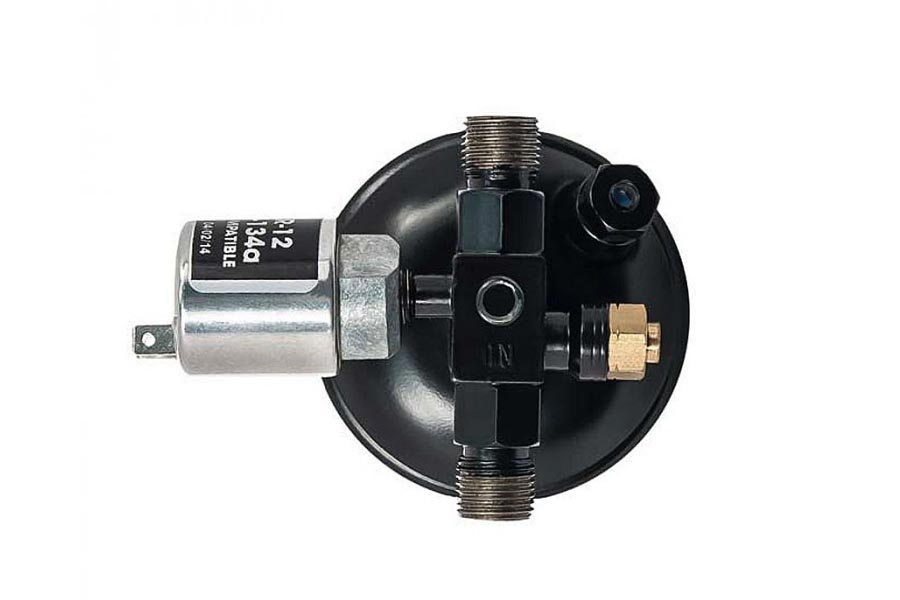

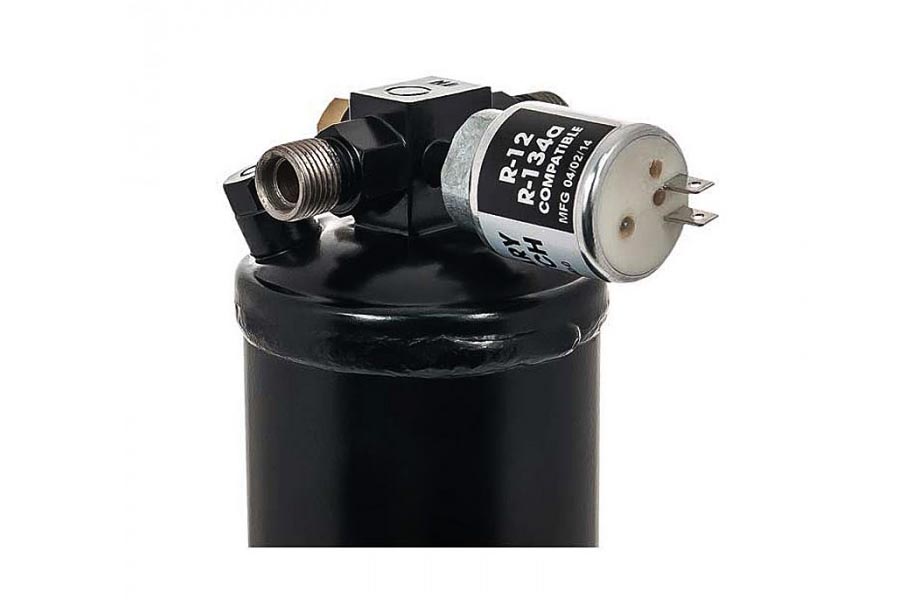

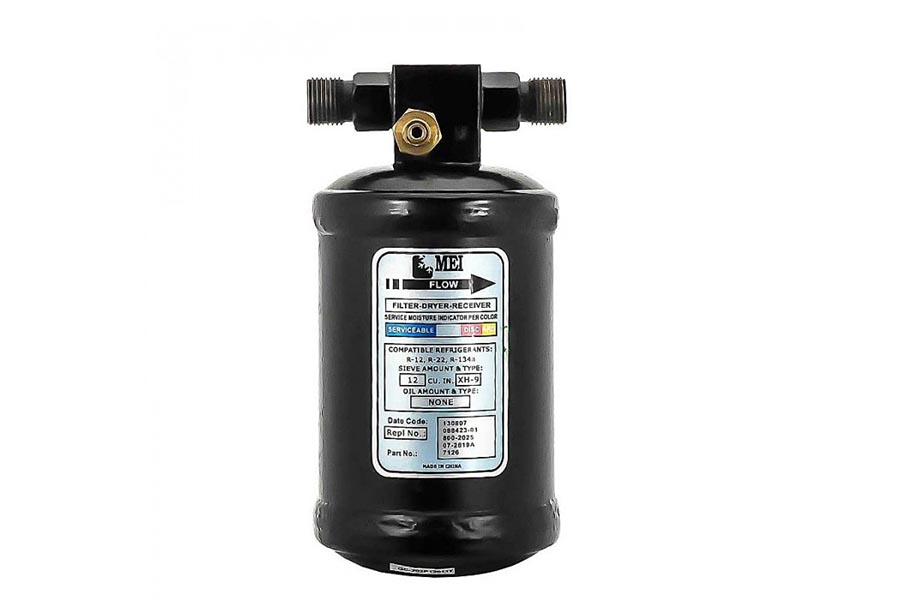

Description: Red Dot – Multi Applications A/C Drier
OEM Number: RD5-4727-0
Length: 6.5”
Diameter (in.): 3”
Inlet: Male Insert O’Ring
Inlet Size: 3/8” #6
Outlet: Male Insert O’Ring
Outlet Size: 3/8” #6
Material: Steel
Product Name: Receiver Drier
Refrigerant Type: R12/R134a
Site_Glass Location: Top
Switch Port Type: 1/4” Male R12
Notes: w/Fuse Plug – Side
Additional Notes: supplied with binary switch

Cross Reference: 1901006, 7127, 825-4128, 61-3316, 127734, PTAC7127, 07-2613A, 319044, N83-319044, N83319044, RD5-4727-0, N83-319044, 61-33167123 7126 ABP N83 319004 ABP N83 319210 ABP N83 319244 ABP N83 319270 0256818-6 803-323 540064 540153 26-0776 6674235 88423-00 JA1170 JA1850 JA1880 JA1900 JA11700 JA18500 JA19000 936163 825-4101 800-2022 800-2025 003-4228 E-804101 E-804151 E-804152 936163 763787 BOA85 471 00 329 406209 RD-5-3843-1 1999016 402242 4379-RD570611 14432 1691604-C1 37-10872 088423-00 088423-01 74R2536 74R2566 74R2576* RD-5-7061-0P* RD-5-7061-1P RF2815404281 RF3345400997 61-3316 07-2619A 07-2621A 73-3005 176311 BOA85 471 00 239 37-10872-AM 37-R2536 ABPN83319004 ABPN83319210 ABPN83319244 ABPN83319270 BOA8547100329 1691604C1 127709 PTAC7123 PTAC7126 RD12025 07-2601A 7126D
