Sanden Model/s #: 4742

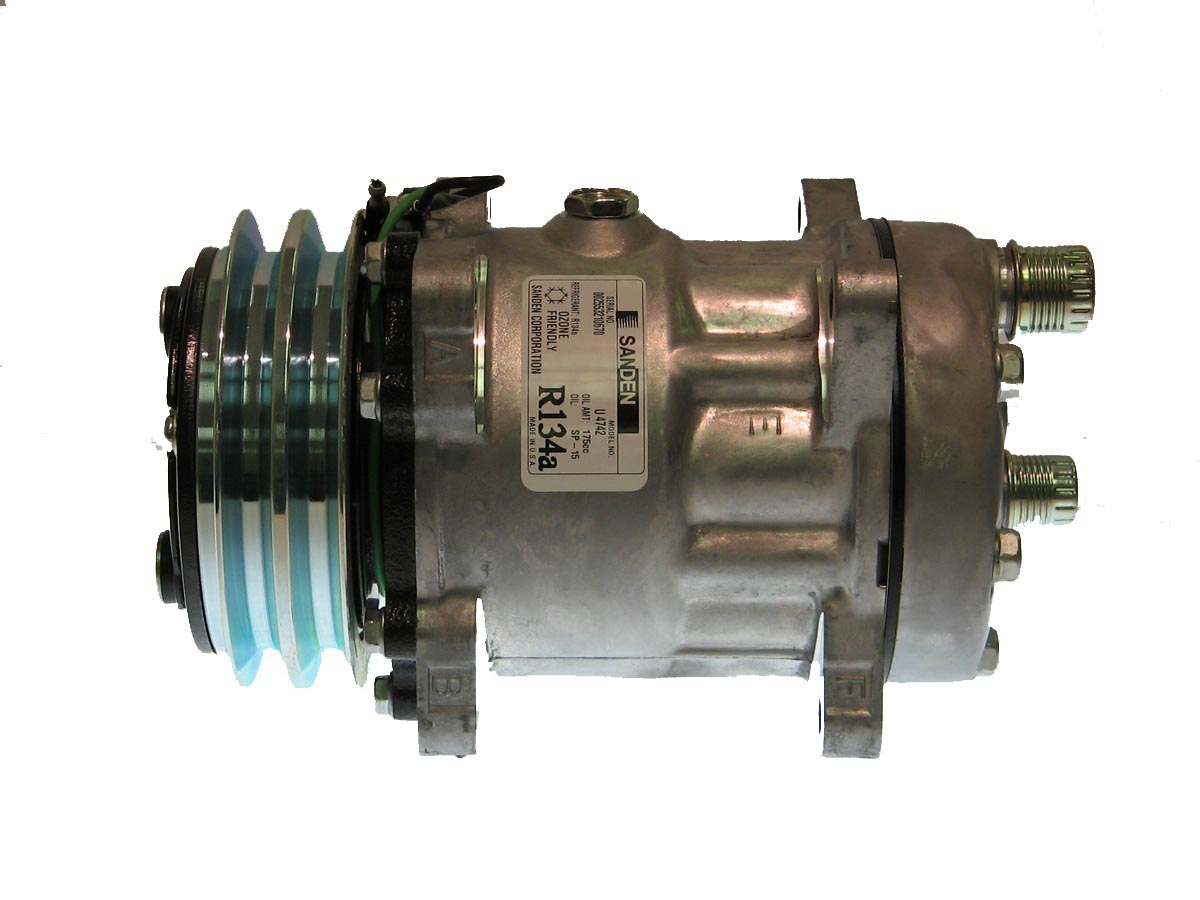

Description: OEM SANDEN COMPRESSOR SD7H15HD 4742 HOR 125mm 2A 24V EAR KG
OEM #: ABP N83 304294
Rotor Size: 125
Rotor Groove: A2
Coil Voltage: 24
Compressor Family: SD7H15
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 175
Cylinder Head: KG
Port Angle: H
Port Clocking: Rear
Head Port Style: 3/4X7/8
Belt Type: Two 1/2” Belts
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Fitting Style: Male Insert O-Ring #8 & #10
Gauge Line to First Groove: 23.80
Gauge Line to Middle Groove: 0.00
Gauge Line to End Groove: 39.55
Connector: 1 Wire Male Bullet
Shaft Type: Long Key Shaft
Diode Protection: None
Replacement Clutch Assembly: 4741-9931
Schematic: CLICK HERE
Service Manual: CLICK HERE
Application: TAKEUCHI New Original Sanden Compressor
KENWORTH ANY ANY Compressors
PETERBILT ANY ANY Compressors
Cross References: 1101265, 5749, ABP N83 304294, 300-5197, 330-1635, 75R84652, 4742, 03-3727, 50-5303, 20-09976, ABPN83304294, 124763, PTAC5749, 204742, 5512658, 6512658, 7512658, 20-09976, 75R84652, C2409, 3005197
