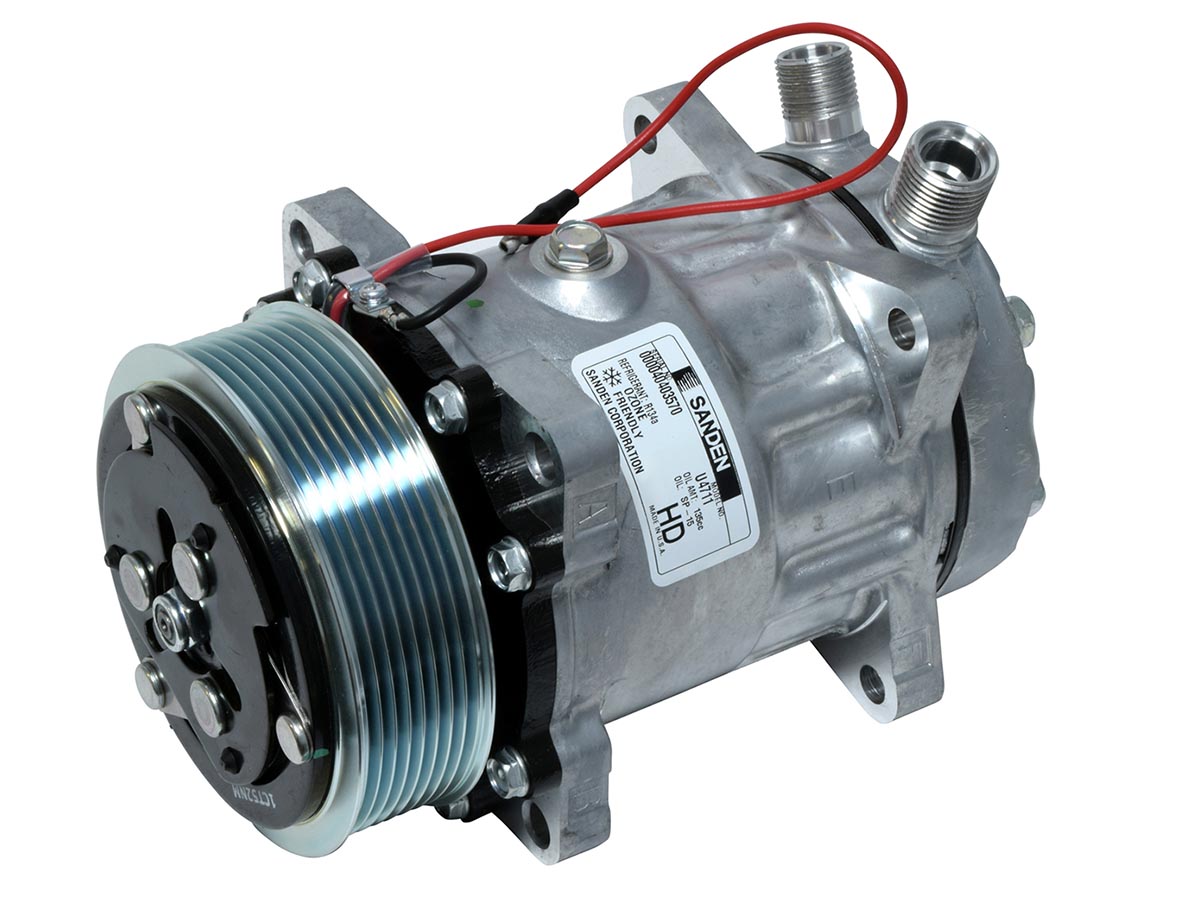

NEW Original Sanden Compressor 4711 (1101255)

Sanden Model/s #: 4444, 4711, 5312, 5371, 6125, 7492, 8103, 9682, 194711, 1014J9, 1027G9, SD5S14-5312

Multi Fit Applications Sanden Compressor SD7H15 4711 VOR 119mm PV8 12V EAR JD HEAD
OEM#: 8177089, 18-04081
Compressor Family: SD7H15
Style: HD
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 135
Oil Type: PAG100
Cylinder Head: JD
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8
Rotor Size: 119
Rotor Groove: PV8
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Fitting Port Position: Vertical
Fitting Style: Male Insert O-Ring #8 & #10
Gauge Line to First Groove: 21.63
Gauge Line to Middle Groove: 34.09
Gauge Line to End Groove: 46.55
Coil Voltage: 12
Connector: 1 Wire Male Bullet
Notes: OE coil has diode
Diode Protection: None

Clutch Assembly: 6522-6010

Schematic: CLICK HERE

Service Manual: CLICK HERE

Applicationsa:
International (Navistar) Sanden Compressor
Kenworth Sanden Compressor
Peterbilt Sanden Compressor
Volvo Sanden Compressor
Case New Holland Sanden Compressor 82008689

Cross References: 1101255, 5706, ABP N83 04344, ABP N83 304344, ABP N83 304562, 509-540, 525734, 18-00093-02, 967209, 300-4429, 330-3164, E-801192, 967209, 967225, ZGG705006, 82016158, 78565, 406048, 1401114, 402053, 18-04081, 75R81482, 75R8462, RD-5-11322-0P, RD-5-9251-0P, RF999995400, RF999997165, 03-3784, 50-5470, 8177089, 1401373, 1401385, 20-10017, 20-08100, ABPN8304344, ABPN83304344, ABPN83304562, 124544, PTAC5706, 820161581, 204711, 207492, 10347161, 638565, 77565, 78565, 304562, 204878, 5511647, 6511647, 7511647, 82016157, 82016158, 15628022, 5182W5201, 967209, TEM967209, 82008689, 1804081, 14SD4711, 8FK351126001, CO2052CA, C1612
