Sanden Model/s #: 4706, 7401, 10271U, 1027G6
Description: OEM Sanden Compressor Model SD7H15 12V R134a with 125mm 2Gr Clutch and CB Head
Compressor Family: SD7H15
Style: HD
Rotor Size: 125
Rotor Groove: A2
Coil Voltage: 12
Mount Type: Ear 8 Long
Ear ID: 83.3
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 300
Oil Type: PAG100

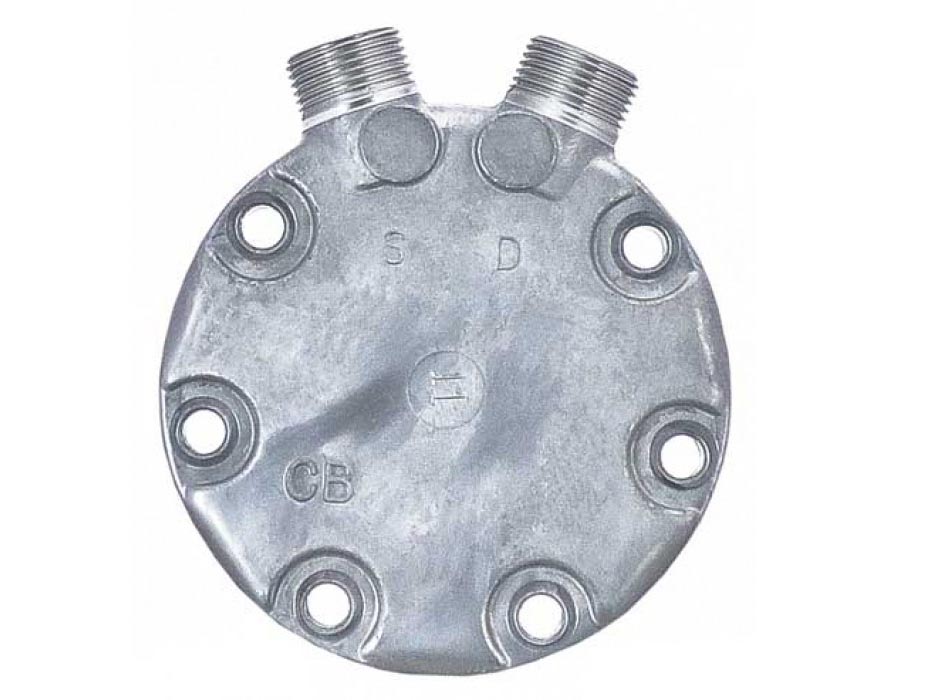

Cylinder Head: CB
Port Angle: V
Port Clocking: 12:00
Head Port Style: 1X14
Belt Type: V-Belt
No. Comp. Cylinders: 7 cyl
Gauge Line to First Groove: 23.80
Gauge Line to Middle Groove: 0.00
Gauge Line to End Groove: 39.55
Connector: 1 Wire Male Packard #12065171
Shaft Type: Keyed shaft
Notes: Fits Zetor farm tractor
Replacement clutch Assembly: 6511-6110
Schematic: CLICK HERE
Service Manual: CLICK HERE
Application: Zetor – Farm Tractors Sanden Compressor 7H15HD
Cross References: 1101251, 54706, 72275276, ABP N83 304313, 232-9273, 300-4140, 330-1808, 72239750, E-801173, E-801182, E-801187, 9705764, 406102, 20-10069, 75R84552, 4706, 9263, 512077, 03-3419, 50-5455, 1401330, 20-10045, 20-07929, ABPN83304313, 124346, 8177, PTAC54706, 03-3723, 207401, 10364151, 204877, 2010045, 14SD4706, 14SD4706NC, C1921, 509-554
