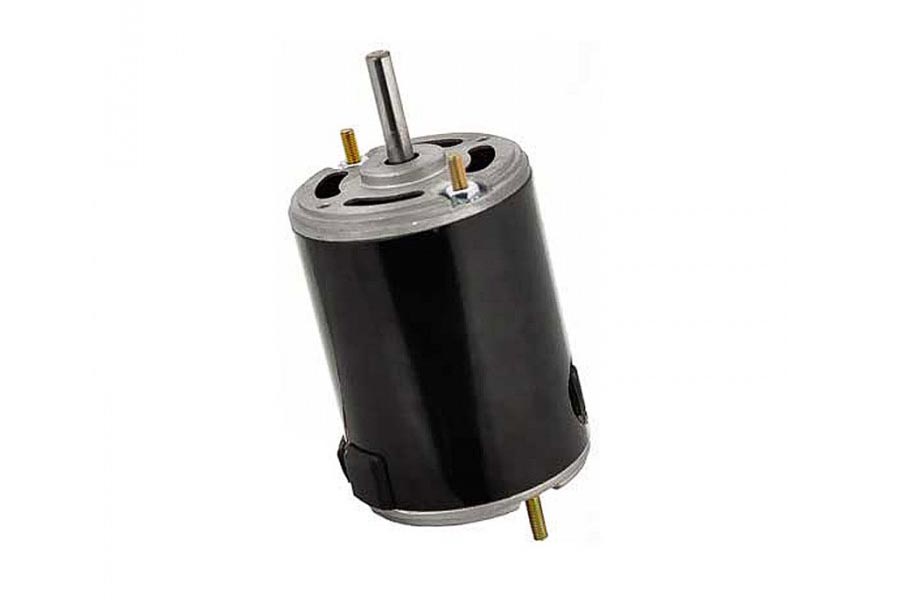

BLOWER MOTOR SINGLE SHAFT 5/16″ DIA., REV, 1 Speed, 12V 2 WIRE (1001209)

Description: Ford/Sterling, Volvo 12 Volt Blower Motor Single Speed 2 Wire Reversible With 5/16″ Shaft

OEM#: HA1060, PM357, D3TZ-18527A, C5TZ-18527-A, RD5-4387-0, C5TZ-19805-A, RD5-3753-0, 301072, 301001, C5TZ18527A, 1669342-C1, 3230-51020, 2790-HV33109, 4379-RD5-3753-0, 1099007, 150-4588, 73R-0962, 3034, 2809-540-002, ABP N83 301382, ABP N83 301001, 1691721C91, HA1070, 60009-5003, 5009, 3949262, HA10700, 73R0532, 73R0422, 1099007
Volts: 12V
Length: 4.75” (OA Body)
Wire Type: 2 wires
Motor Diameter: 3”
Motor Length: 4”
Mount Type: Stud
Rotation: REV
Shaft Length: 1.5”
Shaft Type: Single (5/16” dia)
Speed(s): 1
Mounting Stud Distance: 2.31”
Vent: Vented
Note: BSM301071, RD5-3753-1

Applications: Multi Fit Applications

Ford Truck Blower Motor F-Series F150/550SD (1978-1965); F650/750SD – F600/FT900 (1978-1965); L-Series (Louisville Line – L, LA, LN, LNT, LTA, LTL, LTS; 8000/9500 Aeromax) (1991-1987)

International (Navistar) Blower Motor (1993-1989)

Kenworth Blower Motor C500 Series (1998-1978)

MACK Blower Motor CH Series (1995-1986); R,DM Series (1993-1976); RW Series (1988-1976); WL,WS Series (1992-1975)

Peterbilt Blower Motors All Conventional Class 8 Series (1997-1987)

Western Star Blower Motor All Models (1995-1985)

Cross Reference:  1001209, 3928, 201232, 203132, 203258, HA1055, HA1800, HA10600, 937168, 150-4650, 102-5008, 15-8122, E-803025, 2809-515-007, 2809-540-002, 2809-541-177, C5TZ-18527A, 35560, 406139, 301001BSM, 301072BSM, 1011012, 1099007, 274253, 3230-51020, 3790-HV33109, 4300-17660, 4379-RD537530, 1-1025, 1-3840, 208978, 1669342-C1, 1676648-C1, 1691721-C91, 26-14554, 73R0352, 73R0452, RD-5-3753-0, RD-5-6526-2, PE2075Q, PF2624Q, PM357, 01-3011, 30-1100, 60009-5003, 1669342C1, 1676648C1, 1691721C91, 123800, PTAC3928, RD5-4387-0, RD5-3753-0, 301072, 301001, BSM301071, RD5-3753-1, BM112472
